When you see P06B9 pop up, your vehicle’s PCM is telling you it’s not happy with the glow plug control circuit for cylinder 1. From my time in the shop, I can tell you this code nearly always means trouble for diesel engines, since they rely on glow plugs to heat up the cylinders-especially in cold weather, when a good start is anything but guaranteed. Think of the glow plug as a tiny electric heater that threads right into the cylinder head. When you turn the key, it gets blazing hot in seconds, helping the engine fire right up. The PCM doesn’t just set and forget; it constantly watches the voltage and health of each glow plug circuit. If it notices something odd-maybe the voltage is out of range, or the circuit isn’t behaving as expected-it’ll flag the P06B9 code and usually throw on the check engine light for good measure. The whole setup isn’t just about the plug itself; you’ve got wiring, connectors, and sometimes a glow plug controller or timer in the mix. The point is to make sure your diesel starts and runs smooth, even when the mercury drops.

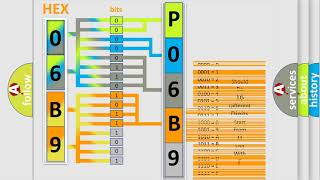

DTC P06B9
4834
6 minutes of readingCauses of P06B9 Trouble Code
From experience, the most common reasons for a P06B9 code are pretty straightforward, but there are a few things to keep in mind. Here’s what I usually find:
- A bad glow plug for cylinder 1 (it’s more common than you’d think)
- Broken, damaged, or shorted wiring in the glow plug circuit
- Loose, corroded, or faulty connectors at the glow plug or controller
- A failed glow plug timer or controller module
It’s not unusual for folks to overlook the glow plug itself, thinking the problem must be with the wiring or controller, but a faulty plug can absolutely trigger this code.
Symptoms of OBD Code P06B9
When this code is active, you’ll probably notice a few things. Most often, the engine will be harder to start-especially when it’s cold outside. You might see excessive black smoke coming from the exhaust, and the engine could run rough or hesitate. Sometimes, you’ll feel a general lack of power or notice that your fuel economy has taken a hit. In some cases, you might even get misfire codes stored alongside P06B9. If you see the check engine light and any of these symptoms, it’s a good bet this code is the culprit.
P06B9 Diagnosis Steps
Let me walk you through how I’d tackle this code in the shop:
- Start with your eyes. Give the wiring and connectors at the cylinder 1 glow plug a close look-anything loose, green with corrosion, burnt, or frayed needs attention. Don’t just glance; get your hands in there and pull at the connectors lightly to see if they’re hanging on by a thread.
- Next, grab your scan tool and check for any other stored codes or freeze frame data. Jot this down-you’ll want it if you hit a dead end and need to circle back.
- Clear the codes and take the truck for a spin. If P06B9 comes back, you know you’ve got a live issue, not just an old ghost code.
- Test the glow plug itself. Here’s a pro-tip: Pull the plug, give it 12 volts from the battery, and see if it glows bright red at the tip. If it doesn’t, you’ve found your culprit. If you like numbers, check resistance with a digital ohmmeter and compare to factory specs. Out of spec? Time for a new plug.
- If the plug’s good, shift your attention to the controller or timer. Use your scan tool to activate the glow plug circuit, then check for battery voltage at the plug’s connector. No juice? Now it’s time to check power at the controller, and don’t forget the fuses and relays. Here’s where a lot of people trip up: Always check fuses under load-sometimes they only fail when the system is drawing power.
- If you’re seeing voltage at the controller but not at the plug, you’re probably chasing a wiring break or short. Trace those wires inch by inch until you find the problem spot.
- Don’t forget-double and triple check you’re working on cylinder 1. I can’t tell you how many times I’ve seen even seasoned techs go chasing gremlins on the wrong cylinder.
Common Mistakes with OBD2 Code P06B9
Over the years, I’ve noticed a few classic missteps with this code. The biggest? Folks assume the problem can’t be the glow plug just because the code mentions ‘control circuit.’ I’ve seen plenty of dead plugs light up this code. Another one: misidentifying which cylinder is number 1-sounds basic, but it happens all the time, especially on engines where the numbering isn’t obvious. Skipping the simple stuff, like checking fuses under load or looking for corroded connectors, is another. And don’t rush to throw a pricey controller at the problem before you’ve checked the plug and wiring. Take your time, work methodically, and you’ll avoid a lot of headaches.
Seriousness of P06B9 Engine Code Issue
Ignore this code and you’re asking for trouble. A bad glow plug circuit will make your diesel tough to start when it’s cold, and it can quickly lead to rough idling, wasted fuel, and clouds of smoke out the tailpipe. Leave it too long, and you can fry your glow plug controller, PCM, or even the wiring harness itself. I’ve seen stubborn hard starts wear down batteries and starters, too. Bottom line-let this slide and you could be looking at a much bigger, more expensive mess. Tackle it as soon as you spot it.
Repair Solutions for P06B9 Code
If you’re ready to fix P06B9, here’s what’s worked for me:
- Swap out the bad glow plug in cylinder 1-this is often all it takes
- Patch or replace any damaged wires or connectors in the glow plug circuit
- If testing proves it’s faulty, replace the glow plug controller or timer
- Take the time to clean and snug up all electrical connections in the system
- Change any blown fuses or bad relays, but only after you’ve sorted out what caused them to pop
Once you’ve done the repair, clear the code and hit the road. If it doesn’t return, you’re in the clear.
Conclusion
So, here’s the takeaway: P06B9 means your computer’s picked up on an issue with the glow plug control circuit for cylinder 1. On a diesel, this isn’t just some background noise-it’s a real problem that can snowball fast if you let it. From years of wrenching on these engines, I can tell you the best approach is a careful, step-by-step inspection-start with the plug, check the wiring, and don’t overlook the controller. Don’t drag your feet; get it fixed and your diesel will thank you with smooth starts and reliable performance.
