Let me break down what P0AA6 means in plain English: this code stands for “Hybrid Battery Voltage System Isolation Fault.” Basically, your car’s computer has picked up on a problem where the high-voltage (HV) system-think of the big battery and its cables in your hybrid or electric vehicle-isn’t properly isolated from the rest of the car. The HV system is supposed to be separated from the car’s metal frame and the low-voltage (LV) system for safety reasons. If that isolation breaks down, it can be dangerous, so the car throws this code to warn you. This system is constantly monitored by the computer (PCM), and if it senses any leakage or loss of isolation, it sets P0AA6 to let you know there’s a potential electrical hazard. This is especially important in hybrids and EVs, where high voltage is always present and needs to be kept away from anything it shouldn’t touch.
DTC P0AA6
5249
5 minutes of readingCauses of P0AA6 code
From what I’ve seen in the shop and what the official manuals say, the most common reasons for p0aa6 are:
- A fault inside the high-voltage battery itself-sometimes moisture or internal damage causes a loss of isolation.
- Problems with the high-voltage cables-damage, corrosion, or wear can let voltage leak to the chassis.
- Issues with high-voltage electronics or control systems-like a shorted traction motor, a failed system main relay, or even a faulty high-voltage A/C compressor.
- A malfunction in the battery control module, which manages the HV battery and can cause false readings or real faults.
Most often the issue is with the battery or the cables, but I’ve seen all of these pop up in real-world cases.
Symptoms of P0AA6 engine code
If you’re dealing with a toyota dtc p0aa6, here’s what you’ll probably notice as a driver:
- Warning lights on the dash-usually the hybrid system or check engine light comes on.
- The high-voltage system might shut down or not work right, so you could lose electric drive or charging ability.
- The battery may not charge at all, or the car might refuse to start.
Sometimes it’s subtle, but other times the car just won’t go. If you see these signs, don’t ignore them.
Diagnosis using obd code P0AA6
Here’s how I usually tackle a dtc p0aa6 toyota, step by step:
- First, I always make sure to follow all safety procedures-high voltage is no joke. If you’re not comfortable, it’s best to let a pro handle it.
- I start by checking for any other trouble codes. Sometimes P0AA6 comes with a sub-code or additional info that points to a specific area-like the battery, cables, or a particular component.
- Next, I visually inspect the high-voltage battery and cables. I look for signs of water intrusion, corrosion, or physical damage. Don’t forget to check under the car and around the battery compartment-moisture is a common culprit.

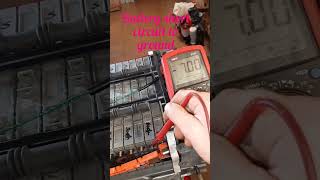

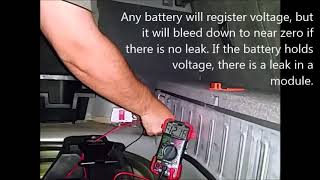

- Then, I use an insulation resistance tester (sometimes called a megohmmeter) to check the isolation between the HV system and the chassis. This tells me if there’s a leak and roughly where it might be.
- If the cables and battery look okay, I move on to the high-voltage components-traction motor, A/C compressor, relays. I disconnect and test each one as needed, following the repair manual for your specific car.
- Finally, I check the battery control module for faults or bad connections. Sometimes a faulty module can trigger this code even if the hardware is fine.
It’s better to have someone assist you, especially when handling high-voltage parts. And always double-check that the system is powered down before touching anything.
Common Mistakes with P0AA6
In cases like this, I’ve seen a few common mistakes:
- Jumping straight to replacing the battery without checking the cables or connectors-sometimes it’s just a corroded plug.
- Overlooking water leaks into the battery compartment-this is a surefire way to end up with isolation faults.
- Not using the proper tools to test insulation resistance-regular multimeters aren’t enough for high-voltage checks.
- Ignoring sub-codes or additional information from the scan tool-these can save a lot of time and point you right to the problem.
Don’t skip the basics, and always follow the step-by-step process. It’s easy to miss something simple if you rush.
Seriousness of dtc P0AA6
Honestly, this is a serious hazard. High-voltage leaks can put you and your passengers at risk of electric shock, and they can also damage expensive components like the battery, inverter, or even the control modules. You don’t want this kind of trouble on the road, and things can go south quickly if overlooked. If the isolation fault gets worse, it could disable your car completely or cause further electrical damage. Don’t put this off for later-get it checked as soon as possible.
Repair steps for obd2 code P0AA6
From experience, the most reliable fixes for p0aa6 are:
- Repairing or replacing damaged high-voltage cables or connectors-this is often the simplest solution if you find corrosion or wear.
- Replacing the high-voltage battery if it’s found to have internal isolation faults or water damage.
- Fixing or swapping out faulty high-voltage components like the traction motor, A/C compressor, or main relays if they’re the source of the leak.
- Repairing or replacing the battery control module if it’s misreading or causing the fault.
Always follow the official service manual for your vehicle, and make sure everything is properly insulated and sealed before finishing up.
Conclusion
To sum it up, P0AA6 means your hybrid or EV has detected a loss of electrical isolation in the high-voltage system-a real safety concern. The most common causes are battery or cable issues, but it can also be a component or control module at fault. Diagnosing it takes careful, step-by-step checks, starting with the basics and moving up to more complex tests. The risks just aren’t worth ignoring-this code can lead to serious damage or even personal injury. The best path is to address it quickly, follow the proper diagnostic process, and repair or replace the faulty part using OEM procedures. That’s the safest and most reliable way to get your car back on the road.
