Code: P2138 - The voltage signals from the throttle or accelerator pedal position sensors D and E do not match, indicating a possible sensor or wiring issue.

P2138 is one of those codes that instantly gets my attention when I’m troubleshooting a driveability problem. From my time behind the scanner, I can tell you it means the car’s computer-whether it’s called the ECM or PCM-has picked up on a disagreement between the two sensors that monitor your gas pedal and throttle position. These sensors are crucial because they tell the computer exactly how far down you’ve pressed the accelerator, and that’s how your engine manages power and response. If those two sensors don’t match up-if even a small mismatch pops up-the computer doesn’t know which one to trust. So, it throws a warning, often cuts your available power, and keeps things in check. It all comes down to safety. The last thing you want is a car that can’t be sure what you’re asking it to do. When you get a P2138, think of it as your car saying, “I’d rather play it safe than risk something going wrong with your throttle.”

Causes of P2138 engine code

If you’ve spent as much time as I have fixing these, you’ll notice some patterns. The p2138 code, whether it’s popping up on a Chevy, Nissan, or GMC, usually traces back to a few key problems. Nine times out of ten, it’s a faulty throttle position (TP) sensor or accelerator pedal position (APP) sensor. But don’t overlook the wiring-damage, corrosion, or a loose connector between the sensors and the computer is a classic troublemaker. Every so often, it’s the computer itself, especially if it needs a software update or has an internal issue. And don’t underestimate a low battery or a recent disconnect; I’ve seen more than one p2138 caused by a simple battery swap that wipes out the throttle settings. Here’s what shows up most in my shop:

Failed throttle position (TP) sensor or accelerator pedal position (APP) sensor
Wiring or connector issues-anything from corrosion to a pin not fully seated
PCM problems, like needing a software update or having internal faults
Low battery voltage or a recent battery disconnect that reset throttle data

Symptoms of P2138 code

Whenever I see gm dtc p2138 00, I know the customer is probably dealing with some obvious headaches. The check engine light will be shining bright, and you’ll likely notice your car feels weak-sometimes it won’t go past a certain speed, or it just doesn’t respond like it should. I’ve had customers report their car stalling out when they stop, or suddenly losing all power while driving. Some models trigger “limp mode” or “reduced power mode,” which just means the computer is stepping in to keep you safe by limiting the throttle. If you’re seeing any of these symptoms, especially stalling or a big drop in power, don’t ignore it-it’s not something that’ll go away on its own.

Diagnosis steps for P2138

Let me walk you through how I tackle chevy code p2138-step by step, straight from the garage. I always start with the basics. First, I check the battery voltage. A weak battery can set off a chain of weird codes, so make sure it’s up to snuff. Next, I get my hands on the wiring and connectors at the accelerator pedal and throttle body. Look close for any green crust (corrosion), broken wires, or loose plugs. Sometimes just moving the connector while watching live data will expose a bad connection. After that, I grab my scan tool and watch the TP and APP sensor readings side by side-if one jumps around while the other stays steady, you’ve probably found the culprit. Don’t forget to check for factory technical service bulletins (TSBs); more than once, I’ve fixed a P2138 with nothing but a software update or a quick throttle relearn after a battery swap. If you’re comfortable with a multimeter, check those sensor voltages directly-just be careful not to short anything out. And always clear the code after repairs to see if it comes back. Sometimes you’ll fix the problem and forget to clear the code, only to wonder why the light’s still on.

Common Mistakes when fixing P2138 trouble code

I can’t tell you how many times I’ve seen someone toss in a brand new throttle body or pedal assembly, thinking it’ll magically fix p2138-only to find out the real issue was a chewed wire or corroded connector. That’s money down the drain. Another thing folks miss? The battery. Low voltage can cause all sorts of phantom sensor problems. And here’s a big one: skipping the throttle relearn procedure after a repair or battery disconnect. Even if you’ve fixed the hardware, the car won’t play nice until it relearns its settings. So, before you start swapping expensive parts, double-check the basics and don’t skimp on the reset procedures.

Seriousness of dtc P2138

Here’s the straight talk: when code p2138 chevy shows up, it’s not just a mild annoyance. You’re risking sudden power loss or even stalling in the middle of traffic. That’s the kind of trouble that can put you-and everyone else on the road-in real danger. If you let it go, you might wind up stranded or, worse, cause an accident. Limp mode might save your engine from further damage, but it’s not meant to be a long-term fix. And if you just ignore electrical gremlins like this, you could end up cooking your PCM or throttle body. My advice? Don’t let this slide. Get it sorted before you’re left on the side of the road.

Repair tips for obd2 code P2138

Over the years, I’ve learned that most fixes for P2138 are pretty straightforward-once you nail down the root cause. If you’ve got a bad sensor, swap out the TP or APP sensor. For damaged or corroded wiring, repair or replace as needed (and don’t just tape over it). If there’s a TSB for your car, a PCM software update might be all it takes. And if you’ve done any work on the battery or throttle system, don’t forget the throttle relearn procedure; skipping it is a rookie mistake. Here’s a checklist I use in the shop:

Replace defective TP or APP sensor
Repair or replace any sketchy wiring or connectors
Update PCM software if a TSB points to it
Run the throttle relearn procedure, especially after battery service

If you’re working on dtc p2138 nissan or a different make, always check for manufacturer-specific bulletins or procedures-sometimes there’s a shortcut or special step you’ll miss if you don’t look it up.

Conclusion

Here’s what it all comes down to: P2138 means your car’s computer isn’t getting matching signals from the gas pedal and throttle sensors. That’s a safety-critical problem that can leave you stuck with no power or even stalling out. The smartest move? Start with the basics-battery, wiring, connectors-before you jump to expensive sensors or software updates. Don’t drag your feet on this one. Pinpoint the exact issue, fix it right the first time, and you’ll dodge a world of headaches down the road. Trust me, your car (and your wallet) will thank you.

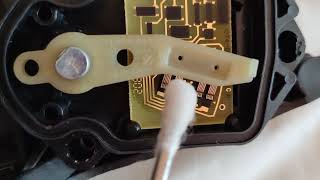

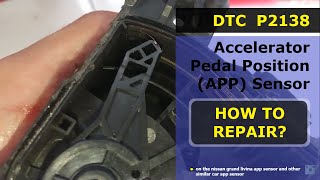

Video for "Error p2138" on YouTube
