When you see that P2176 code pop up, what it’s telling you is the engine’s computer-what we call the PCM-can’t figure out or remember exactly where the throttle plate should sit when it’s closed. I’ve spent plenty of hours chasing down idle problems, and this one’s all about the electronic throttle control system, which replaced the old-school throttle cable. The throttle plate controls how much air your engine gets, and if the PCM can’t get it to settle where it wants at idle, you’ll see this code. That’s a big deal because smooth idle and throttle response all hinge on this. If the position can’t be ‘learned,’ you can’t count on safe or predictable throttle operation. Nine times out of ten, this ties back to the throttle actuator control (TAC) motor and its wiring, or something physically jamming or sticking the throttle plate.
DTC P2176
4171
6 minutes of readingP2176 engine code causes
From my time under the hood and what the factory guides lay out, here’s what usually sets off a p2176 code:
- Something is physically jamming or sticking the throttle plate-carbon buildup is notorious for this.
- The throttle actuator control (TAC) motor is worn out or just plain failed, so it can’t move the plate the way it should.
- Electrical gremlins in the TAC circuit, like brittle wires or corroded connectors.
- Once in a blue moon, it’s a problem with the PCM itself, but that’s way less common than the others.
Honestly, most of the time it’s a filthy or sticky throttle body, but don’t overlook a tired actuator motor-they give up more often than you’d think.
P2176 symptoms
If you’re up against a p2176, there are a few classic symptoms to keep an eye out for:
- The check engine light will be lit-and if things get bad, it might even flash at you.
- The engine could idle too rough, too high, too low, or suddenly stall at a stop.
- You might notice sluggishness or hesitation when you hit the gas.
- On some models, you’ll get thrown into ‘limp mode,’ where the car cuts power to protect itself and barely limps along.
Take my advice: don’t brush this off, especially if the idle’s acting up or the pedal feels unresponsive. I’ve seen this on all sorts of makes-Ford, Renault, Chevrolet, you name it.
P2176 trouble code diagnosis
Whenever I tackle this code, I run through a pretty specific checklist:
- Start by scanning for any other codes. If you’ve got more-especially ones tied to the throttle or sensors-chase those down first. They might be the real issue.

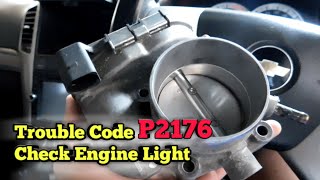

- Next, I crack the hood and take a hard look at the throttle body. I’m looking for thick carbon, grime, or anything that might be jamming the plate. A little flashlight goes a long way here.
- With the key off, I’ll gently move the throttle plate by hand (if I can). It should swing smoothly-if it catches or sticks, that’s a smoking gun.
- Then, I check the wiring and plugs going to the actuator. Corrosion, loose pins, or a broken wire can hide in plain sight. Give the harness a wiggle-sometimes a break only shows up if things move.
- If everything checks out, I hook up my scan tool and watch the throttle position readings while cycling the key. If the numbers don’t match the physical plate movement, you’re likely dealing with a bad actuator or a sensor issue.
- Finally, if I’m leaning toward a motor problem, I follow the factory pinpoint tests to check resistance and function. Sometimes, you’ve got to pull the whole throttle body to get a proper look or bench test things.
If you’re not comfortable poking at these systems, don’t go it alone-they’re touchy, and one wrong move can make things worse.
P2176 code common mistakes
A classic mistake I see: folks go right for replacing the throttle body or even the PCM before they’ve done a proper cleaning or checked the basics. Skipping the cleaning step is huge-carbon buildup is everywhere, and a good scrub can save you a lot of money. Another common trap is ignoring other codes that might point to a sensor or wiring issue. And here’s a pro-tip from the garage: just because wires look okay on the outside doesn’t mean they’re not broken inside. Always check them closely.
Obd2 code P2176 seriousness
This code isn’t something to let slide. If the PCM can’t handle the throttle, you could lose power or stall out right when you need it most-think merging into traffic or cruising on the highway. That’s not just annoying, it’s downright dangerous. Plus, if you ignore it, you might fry the actuator motor or force the PCM into a full limp mode, leaving you stranded. Trust me, you don’t want to be stuck with this kind of problem.
Dtc P2176 repair steps
Here’s what’s worked for me time and again with p2176-whether you’re wrenching on a Chevrolet or anything else:
- Start by thoroughly cleaning the throttle body. Get every bit of carbon and gunk off the plate and bore.
- Repair or swap out any wiring or connectors at the throttle actuator that look suspect.
- If the actuator motor’s dead, you’ll need to replace the whole throttle body assembly (the motors are usually sealed units these days).
- Once you’ve fixed things, make sure to run the throttle relearn procedure-either with a scan tool or following the factory steps-so the PCM knows the new idle position.
- On rare occasions, if the PCM is the troublemaker, it’ll need reprogramming or replacement-but save that for last.
My advice? Always start with cleaning and inspecting before you go throwing parts at it. For stubborn errors like p2176 or dtc p2176 chevrolet, these steps have solved the problem more times than I can count.
Conclusion
Here’s the bottom line: P2176 means your PCM can’t lock the throttle plate into its proper idle position-usually because of a sticky plate or a faulty actuator. This is something you need to handle right away, because it can turn into a real headache or even a safety problem fast. The best fix is always a careful cleaning and inspection, followed by checking the wiring, and only replacing parts if you’re sure they’re shot. Move quickly and work methodically, and you’ll have your car running like it should again in no time.
