Code: P249D - The system that injects diesel exhaust fluid (DEF, also called reductant) is not adding enough fluid, causing the control limits to be reached.

Let me break down the p249d code for you, straight from my years in the shop. When this code lights up your dash, your car’s computer is basically shouting that the DEF (Diesel Exhaust Fluid) injection system is working overtime-more than it should. Officially, it’s called “Closed Loop Reductant Injection Control At Limit - Flow Too Low.” In everyday terms, your vehicle is monitoring how much DEF it squirts into the exhaust to scrub those nasty emissions. If it keeps having to dump in more DEF to hit the target, that's when p249d pops up. The system uses something techs call the long-term adaptation factor (LTAF). Don’t let the jargon throw you-that just means your car remembers how much it’s had to compensate over time. When that number gets too high, the computer knows something’s not right, usually pointing to a DEF flow hiccup or a problem with the SCR (Selective Catalytic Reduction) setup. This whole arrangement exists to keep emissions legal. So, when things go sideways, your car doesn’t mess around-it tells you right away.

Causes of P249D code

From experience and what the manufacturer data shows, the most common reasons for a p249d are:

DEF injector is clogged or restricted, so not enough fluid is getting into the exhaust.
DEF supply lines are blocked or frozen, especially in cold weather.
DEF pump is weak or failing, so it can’t deliver enough pressure.
Contaminated or poor-quality DEF fluid, which can cause buildup or sensor issues.
Faulty NOx or ammonia sensors giving bad readings, making the system overcompensate.
Electrical issues like corroded connectors or damaged wiring in the DEF system.

Most often, it’s a simple restriction or a bad injector, but I’ve also seen cases where it’s just bad fluid or a sensor acting up.

Symptoms of dtc P249D

Whenever I’ve come across this code, here’s what usually tips me off: The check engine light is guaranteed to come on. Sometimes, you’ll see a DEF or emissions warning on the dash. I've seen plenty of trucks start a countdown to limited starts or go into limp mode if you ignore it long enough. Early on, though, most vehicles drive just fine, aside from those warnings. Think of these as your car’s way of tapping you on the shoulder-don’t brush them off.

Diagnosis process for P249D trouble code

Here’s how I usually tackle a P249D trouble code, step by step:

First, I check the DEF fluid level and quality. Make sure it’s topped up and not contaminated-cloudy or colored DEF is a red flag.
Next, I inspect the DEF injector for any signs of clogging or buildup. Sometimes you can spot crystals or residue right at the nozzle.
Then, I look over the DEF lines for kinks, blockages, or signs of freezing if it’s cold out. It’s better to have someone cycle the ignition while you listen for the DEF pump running.
I’ll scan the system for any other codes, especially ones related to the NOx sensors or SCR system. These can point you in the right direction.
If everything looks good so far, I’ll check the electrical connectors and wiring for corrosion or damage-don’t forget to inspect the harness near the DEF tank and pump.
Finally, if the basics are all clear, I’ll use a scan tool to watch the adaptation values and see if the system is still trying to overcorrect. If so, it’s time to test the injector flow or look deeper into the sensors.

It’s best to start with the simple stuff before jumping into expensive parts swaps.

Common mistakes during obd code P249D troubleshooting

A classic mistake I see is folks jumping straight to swapping out the DEF injector or pump without even glancing at the fluid quality or checking for blockages. Skipping over the wiring-especially connectors-is another blunder that can waste hours and a lot of cash. Corroded pins can mimic all sorts of sensor failures. And here’s a pro-tip: always check for related trouble codes. They can point you toward the real culprit, saving you from chasing your tail. Trust me, start simple and work your way up.

Seriousness of P249D

Let me be blunt: you can't afford to ignore p249d. If you let it fester, your car might start limiting engine power or, worse, lock you out after a certain number of miles. Running with a busted DEF system doesn’t just hurt your wallet at inspection time-long-term, you could cook your SCR catalyst, fry a sensor, or burn out the DEF pump. Those repairs are anything but cheap. Bottom line? Tackle this code sooner rather than later.

Repair solutions for P249D engine code

From what I’ve seen in the bay, these fixes usually get your p249d sorted:

Drain and refill if the DEF fluid looks or smells off.
Clean or swap out the DEF injector if it’s gummed up.
Patch or replace any DEF lines or hoses that look damaged, blocked, or frozen.
Install a new DEF pump if yours is weak or noisy.
Repair any wiring or connectors showing signs of corrosion or cracks.
Swap out bum NOx or ammonia sensors if they’re feeding bad info to the computer.

Once you’ve done the repair, don’t forget to clear the code and run a system check. Make sure that warning light stays off and everything’s running smooth before calling the job done.

Conclusion

So here’s the bottom line: p249d means your DEF injection system is on the struggle bus, often thanks to a blockage, junky fluid, or a sensor on the fritz. Ignore it, and you’re rolling the dice with bigger, costlier headaches-maybe even a no-start. Start with the easy stuff: check the fluid, hunt for clogs, and eyeball the wiring. Nine times out of ten, a basic fix gets you rolling again. If you’re stuck or just want peace of mind, don’t be shy about getting a pro with the right gear to take a look. Quick action is your best friend here-it’ll save you time, money, and a lot of stress down the road.

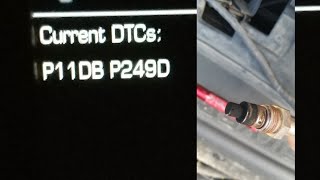

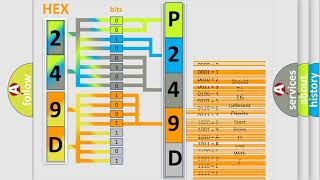

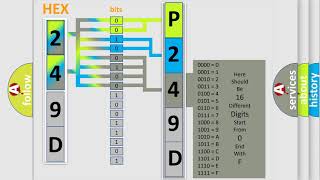

Video for "Error p249d" on YouTube
