Main Causes of obd code P2612
From years of chasing down gremlins in Volkswagens, I’ve found a few usual suspects when it comes to a P2612:
- The refrigerant control valve itself going bad-that’s a classic.
- Wiring harness troubles, like a wire that’s broken, shorted, or just hanging on by a thread.
- Bad electrical connections at the valve connector-think corroded, bent, or even pushed-back pins. You’d be amazed how often that happens.
In my experience, it’s almost always a toss-up between a failed valve and a wiring fault somewhere between the module and the valve. Every so often, I’ll see water sneak into the connector or some sort of physical damage. Don’t rule those out if you’re scratching your head.
Typical Symptoms of obd2 code P2612
If P2612 pops up, the check engine light is your first clue. Sometimes, that’s all you’ll see. Other times, you’ll notice your A/C isn’t cooling like it did last summer-or it might quit entirely. Occasionally, everything feels normal except for that annoying warning light. If your climate system’s acting up and you’ve got this code, the two are likely connected.
Diagnosis Steps for P2612 code
Here’s my go-to routine for hunting down a P2612 on a Volkswagen:
- Start with a solid visual check. Look at the harness and connector at the refrigerant control valve-broken wires, loose fittings, or greenish corrosion are bad news. Get someone to wiggle the harness while you watch for flickers or changes.
- Unplug the connector and inspect the pins. Bent? Broken? Pushed back or looking crusty? That’s often the culprit right there.
- Next, grab your multimeter and check the wiring between the valve and the control module for continuity. If you find an open or a short, you’re on the right track.

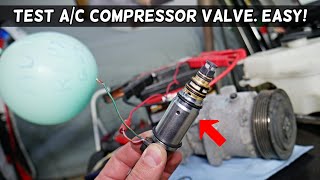

- If the wiring passes muster, move on to the valve. Some valves can be checked for resistance-compare your readings to spec. Out of spec? The valve’s likely toast.
- After all that, clear the code and fire up the A/C. If the code returns and everything else checks out, you’re probably looking at a bad valve.
Here’s a pro-tip from the garage: always check for related technical service bulletins. Sometimes the factory’s already seen this and there’s a revised part or a better fix out there.
Common Mistakes When Fixing P2612
A common rookie move I see is swapping out the refrigerant control valve without checking the wiring and connectors first. Another is missing corrosion hidden deep in the connector-easy to overlook unless you really look close. Folks also sometimes forget to look up technical service bulletins, which can be a real time-saver if there’s a known issue. My advice? Take it step by step-don’t just throw parts at it and hope for the best.
How Serious Is dtc P2612
P2612 usually won’t leave you stranded, but don’t brush it off. If your A/C’s down, driving in the heat can be miserable. Worse, electrical faults left alone can sometimes snowball-think fried modules or bigger wiring headaches later. It’s smart to nip this in the bud. Plus, with the check engine light always on, you’d never know if something more serious popped up underneath it.
Repair Solutions for P2612 engine code
Here’s what usually gets the job done for a P2612 on a VW:
- Patch up or swap out any damaged wiring or connectors at the control valve.
- Clean off any corrosion in the connector and make sure the pins are straight and tight.
- If the valve itself fails the tests, replace it.
- Clear the code, run the A/C, and keep an eye to see if the code comes back. That’s how you know the fix stuck.
Don’t get ahead of yourself-double-check the wiring and connections before you spend money on a new valve. Bad wiring is more common than you’d think.
Conclusion
Bottom line? P2612 on a Volkswagen means your A/C refrigerant control valve circuit has a problem. Nine times out of ten, it’s a bad valve or a wiring hiccup. You’ll get a check engine light, and probably notice the A/C isn’t pulling its weight. The best way forward is to give the wiring and connectors a careful once-over, then test the valve. Don’t sit on this-while it won’t strand you, it can lead to bigger problems if ignored. Fix the wiring first, and only swap the valve if everything else checks out. That’s the recipe I trust for getting your A/C and electronics back in top shape.
