Causes and obd2 code P2651
From what I’ve seen in the shop, the most common reasons for P2651 on a Honda are:
- Low engine oil level or poor oil pressure-sometimes just being a quart low can set this off.
- A faulty VTEC oil pressure switch-these can wear out or get gummed up over time.
- Problems with the wiring harness or connectors-think loose plugs, broken wires, or corrosion.
- Issues with the VTEC oil pressure relay circuit itself-rare, but possible.
In my experience, it’s usually something simple like oil level or a bad switch, but wiring problems do pop up, especially on older vehicles.
Symptoms and obd code P2651
If you’ve got this code, here’s what you might notice: the check engine light will be on, and you might see a warning about the engine or maintenance. Most folks don’t feel a big difference in how the car drives, but sometimes you’ll notice the engine doesn’t have the same pep, especially when accelerating hard. In rare cases, you might feel the engine running rough or hesitating. But honestly, a lot of drivers only spot the warning light.
Diagnosis and P2651
Here’s how I tackle this one step-by-step:
- First, I always check the engine oil level and condition. Make sure it’s full and clean-old or low oil can mess with VTEC operation.
- Next, I visually inspect the wiring and connectors at the VTEC oil pressure switch. Look for broken wires, loose plugs, or any signs of corrosion. It’s best to have good lighting and maybe a helper to wiggle the harness while you watch.
- Then, I’ll use a scan tool to clear the code and see if it comes back right away. If it does, I move on to testing the oil pressure switch itself-sometimes tapping it lightly can show if it’s sticking.
- If the switch seems okay, I’ll check the circuit for proper voltage and continuity using a multimeter. This means making sure the computer is sending and receiving the right signals.
- If all else checks out, I’ll look into the relay and even the powertrain control module, but that’s rare.
Don’t forget to double-check everything before replacing parts-sometimes it’s just a dirty connector causing all the trouble.
Common Mistakes with dtc P2651
One thing I see too often is folks jumping straight to replacing the oil pressure switch without checking the oil level or the wiring first. Another mistake is ignoring corrosion or loose connectors-these little things can cause big headaches. Also, some skip clearing the code and seeing if it returns after a basic check, which can lead to unnecessary repairs. Take your time and check the basics before spending money on parts.
Seriousness of a P2651 code
This isn’t something you want to ignore. While it might not leave you stranded right away, running with a VTEC system that isn’t working right can lead to poor engine performance and even long-term engine damage if oil pressure is actually low. If the oil pressure drops too much, you risk damaging the camshaft, rocker arms, or even the whole engine. Trust me, you don’t want to gamble with engine oil issues-things can go south quickly if overlooked.
Repair options for a P2651 trouble code
Here’s what usually fixes it:
- Top off or change the engine oil if it’s low or dirty.
- Replace the VTEC oil pressure switch if it tests bad or shows signs of leaking.
- Repair or replace any damaged wiring or connectors at the switch or relay.
- In rare cases, replace the relay or address issues in the powertrain control module, but that’s not common.
I always recommend starting with the simple stuff-oil and wiring-before moving on to parts replacement.
- 2001 2002 2003 2004 2005 2006 Acura MDX - Rocker Arm VVT Oil Pressure / VTEC Switch Location GREEN
- How to get rid of code p2651 on 2018-22 Honda accord
- How To Fix Honda P2647: “A” Rocker Arm Actuator System Stuck On

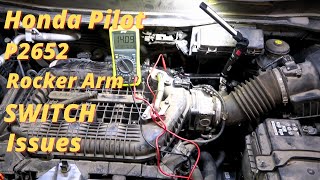

- 2016 HONDA PILOT P2652 Engine Runs Rough - High idle Speed, Rocker Arm Oil Pressure Switch Diagnosis
Conclusion
To sum it up, P2651 on a Honda means the computer isn’t happy with what it’s seeing from the VTEC oil pressure switch. It’s usually something simple like oil level, a bad switch, or a wiring issue. Don’t put this off-acting quickly can save you from expensive engine repairs down the line. Start with the basics, follow a step-by-step diagnosis, and you’ll usually have it sorted without too much trouble. If you’re not comfortable with electrical checks, it’s best to get a pro involved-your engine’s health is worth it.
