Causes of obd code P2BAA
From what I’ve seen in the shop and what the official manuals say, the most common reasons for a P2BAA code are:
- Clogged or restricted DEF injector or lines-crystals or contamination can block the flow.
- Weak or failing DEF pump-not building enough pressure or not responding properly.
- Leaks in the DEF system-hoses, fittings, or connections letting air in or fluid out.
- Faulty pressure sensor-giving the computer bad readings about what’s really happening.
- Electrical issues-wiring or connectors to the pump or sensors can corrode or come loose.
Most often, it’s a blockage or a pump starting to go bad, but I always check the whole system to be sure.
Symptoms related to P2BAA code

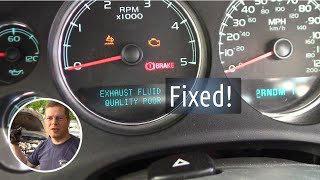

Whenever a P2BAA code pops up, here’s what I’ve noticed in the real world: You’ll almost always get a warning light on the dash-sometimes it’s a generic emissions light, other times it’s specific about DEF. Modern trucks might even give you a message saying something like, “Limited Power Soon” if you don’t fix it. Occasionally, your engine will actually cut back on power, or you’ll notice the DEF level staying the same when it should be dropping. But honestly, a lot of drivers just see the warning and hear a chime-nothing else feels wrong at first, so they ignore it. Trust me, that’s a mistake you don’t want to make.
Diagnosis process for P2BAA trouble code
Here’s how I tackle a P2BAA code, step by step:
- First, I check for any obvious leaks or damage in the DEF lines, pump, and injector. Sometimes you’ll see white crystals-that’s dried DEF and a sign of a leak.
- Next, I look at the DEF fluid itself. If it’s contaminated or old, that can cause all sorts of problems. Make sure it’s clean and the right type.
- Then, I use a scan tool to monitor the DEF pressure sensor readings while commanding the pump and injector to operate. If the pressure doesn’t drop as expected, I know there’s a restriction or the pump isn’t doing its job.
- If the pressure sensor shows weird or inconsistent numbers, I’ll check the wiring and connectors for corrosion or loose pins. Sometimes it’s just a bad connection.
- If everything looks good so far, I’ll remove the DEF injector and check for blockages. A quick cleaning can sometimes clear up the issue.
- Finally, if the pump isn’t building pressure or sounds weak, it may need to be replaced. I always double-check with the manufacturer’s test procedures before calling it.
It’s best to start with the simple stuff-fluid, leaks, and connectors-before moving on to the more expensive parts.
Common Mistakes when dealing with P2BAA
A classic mistake I see in the garage is folks rushing to swap out the DEF pump without first checking for something simple, like a blockage or a small leak. Another one? Ignoring the wiring and connectors. Corrosion on those can fool you into thinking the pump or the sensor is bad. I’ve also seen people overlook the DEF fluid itself-using the wrong type or letting it get dirty will ruin your day. Here’s a pro-tip from the garage: always work through the basics before you start replacing expensive components, or you’ll waste time and money chasing your tail.
Seriousness of dtc P2BAA issues
Don’t shrug this one off. If you let a P2BAA code ride, you’re asking for trouble. Not only can your vehicle drop into limp mode or refuse to start altogether after racking up a few miles, but you’re also running dirty-meaning your emissions are out of spec. That’s a quick way to fail an emissions test or even get slapped with a fine. Plus, running a compromised DEF system can wreck your pump, injector, or even the catalyst, and none of those parts are cheap. What I’ve often found is, the longer you wait, the more expensive the repair becomes. Take it seriously.
Repair steps for P2BAA engine code
Here’s what usually fixes a P2BAA code, based on what I see and what the manuals recommend:
- Cleaning or replacing a clogged DEF injector.
- Repairing or replacing damaged or leaking DEF lines and fittings.
- Replacing a weak or failed DEF pump.
- Fixing or replacing a faulty DEF pressure sensor.
- Repairing corroded or loose electrical connectors and wiring.
- Draining and refilling contaminated DEF fluid with fresh, correct fluid.
It’s important to follow the manufacturer’s test procedures to confirm the fix before clearing the code.
Conclusion
So, if you’re staring down a P2BAA code, what you’re really dealing with is a DEF system that isn’t doing its job-usually because something’s blocked, leaking, or the pump’s giving up the ghost. Don’t let this one slide to the bottom of your to-do list, or you’ll be risking downtime and a hit to your wallet. My best advice? Start simple: check for leaks, blockages, and make sure your fluid is good quality. Only start chasing sensors or pumps once you’ve ruled out the easy stuff. Move quick and methodically, and you’ll have your ride back to running clean and strong in no time.
