Common Causes of obd2 code P0611
From what I see most often in the shop, there are a few usual suspects when it comes to p0611:
- The most common cause is a failed fuel injector control module (FICM) itself. These modules can wear out over time, especially on high-mileage diesels.
- Wiring issues are right up there too-think damaged wires, corroded connectors, or loose pins between the FICM and PCM. Even a little corrosion can throw things off.
- Less commonly, the powertrain control module (PCM) can be at fault. If it’s not processing the FICM’s signals correctly, you’ll see this code.
From experience, I recommend starting with the FICM and wiring before suspecting the PCM, since those are the most frequent troublemakers.
Recognizing P0611 code Symptoms
If your vehicle has a P0611 code, here’s what you’re likely to notice:
- The check engine light will almost always be on-that’s your first clue.
- You might have trouble starting the engine, or it might not start at all. That’s a big red flag.
- Stalling is another common symptom. The engine could die unexpectedly, which is both frustrating and dangerous.
Sometimes, you might also notice rough running or poor performance, but the main things are the warning light, starting issues, and stalling.
Diagnosis Steps for P0611 engine code
Here’s how I usually tackle a P0611 code, step by step:
- First, I always check the battery and charging system. Low voltage can cause all sorts of weird electrical issues, so make sure your battery is healthy and connections are clean.
- Next, I visually inspect the wiring and connectors going to the FICM. Look for frayed wires, corrosion, or loose plugs. Don’t forget to check underneath the harnesses-sometimes damage hides where you can’t see it right away.
- Then, I use a scan tool to clear the code and see if it comes back. If it does, I’ll check for any other related codes that might give more clues.

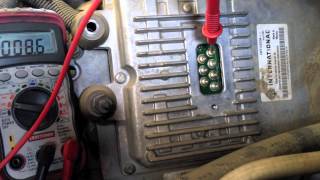

- If the wiring looks good, I’ll test the FICM itself. This usually means checking for proper voltage at the FICM connectors and making sure it’s getting the right signals from the PCM. Sometimes, swapping in a known-good FICM is the quickest way to confirm a bad module.
- If all else fails, and the FICM and wiring check out, I’ll consider the PCM as the possible culprit. But honestly, that’s pretty rare compared to FICM or wiring issues.
It’s best to have someone assist you when checking connections, and always disconnect the battery before unplugging modules to avoid accidental shorts.
Common Mistakes When Addressing P0611 trouble code
I’ve seen a few pitfalls when folks try to fix this themselves:
- Jumping straight to replacing the FICM or PCM without checking the wiring first. Bad wires or connectors are often the real problem.
- Overlooking battery or charging system issues. Low voltage can mimic module failures.
- Not using the correct scan tool to check for related codes or live data. You need the right equipment to get the full picture.
Don’t skip the basics-simple things like a loose ground can cause a world of trouble.
How Serious is obd code P0611
This is not something you want to ignore. A P0611 code can leave you stranded if the engine won’t start or stalls in traffic. That’s a serious hazard, especially if it happens while driving. If left unchecked, repeated stalling or hard starting can put extra stress on your starter, battery, and even the fuel system. In some cases, you could end up damaging the injectors or other expensive components. Things can go south quickly if overlooked, so don’t put this off for later.
Effective Repair Solutions for P0611
Here’s what usually fixes a dtc p0611, based on what I see in the field:
- Replacing the fuel injector control module (FICM) if it’s confirmed faulty.
- Repairing or replacing damaged wiring or connectors between the FICM and PCM. Cleaning up corrosion can sometimes do the trick.
- In rare cases, replacing the PCM if it’s not communicating properly with the FICM.
- After repairs, always clear the code and test drive to make sure it doesn’t come back.
Sometimes, a software update or reprogramming is needed after module replacement, so be prepared for that step if your vehicle requires it.
Conclusion
To sum it up, P0611 means your fuel injector control module isn’t performing right, and that can cause major drivability problems like stalling or no-start. This is a high-priority issue-don’t wait, because it can leave you stranded or cause further damage. The most reliable way to resolve it is to start with a thorough inspection of the battery, wiring, and FICM, and only move on to the PCM if those check out. Addressing it promptly is the best way to keep your vehicle running safely and avoid bigger headaches down the road.
