Enter the error code and car brand

Interaction between electronic units

Code: U0402 - The car’s computer got incorrect data from the Transmission Control Module (TCM), which manages gear shifting.

Let me break down what the U0402 code actually means for your vehicle. This code stands for “Invalid Data Received from TCM,” which is the Transmission Control Module. Basically, your car’s computer network relies on all the control modules-like the engine and transmission computers-to talk to each other and share important information. When the main computer (the PCM) gets data from the TCM that just doesn’t make sense, it throws this code. This isn’t just a minor glitch; the information from the TCM is used by other systems, including safety features like traction and stability control. So, when the data is off, it can affect more than just shifting-it can impact how your car handles and keeps you safe on the road.

Common Causes of U0402

From experience, I can tell you there are a handful of usual suspects when it comes to the U0402 code. Most often, the issue is with the communication between the modules or the data they’re sending. Here’s what I see most commonly:

One or more faulty sensors feeding bad info to the TCM
Wiring problems-damaged wires, loose connections, or corrosion in the harness
A dead battery or issues with the charging system
Problems with the TCM itself (it could be failing or have a software glitch)
Transmission failure causing the TCM to send out-of-range data
PCM (engine computer) failure, though that’s less common
General data network problems-sometimes the modules just aren’t talking right due to a network fault

In cases like this, it’s usually something simple like a wiring issue or a sensor, but I’ve seen it be a failing TCM or even a weak battery more than once.

Recognizing Symptoms of U0402 Engine Code

When this code pops up, you’ll probably notice a few things-some subtle, some not so much. Here’s what drivers usually report when U0402 is active:

The check engine light comes on-sometimes that’s the only sign at first
The transmission might start acting up-shifting rough, slipping, or not shifting at all
The car may go into ‘limp mode,’ which means it’ll limit power and keep you in a single gear to protect itself

If you’re seeing any of these, especially if the car feels weird when shifting or suddenly loses power, don’t ignore it. Things can go south quickly if overlooked.

Diagnosis Process for U0402 Code

Here’s how I usually tackle a U0402 code, step by step. I always recommend starting with the basics before diving into the deep end:

First, check your battery and charging system. A weak battery or alternator can cause all sorts of weird electrical issues. Make sure the battery terminals are clean and tight.
Next, I use a scan tool to confirm the code and see if there are any other related codes. Sometimes, other codes can point you straight to the problem.
Inspect the wiring and connectors between the PCM and TCM. Look for any signs of damage, corrosion, or loose pins. It’s better to have someone assist you here-wiggle the harness while watching the scan tool for changes.
Check the grounds for both modules. Bad grounds are a sneaky cause of communication errors.
If everything looks good so far, I’ll test the sensors that feed into the TCM-especially any speed sensors or transmission-related sensors. Bad readings here can throw everything off.
If the wiring and sensors check out, I’ll look at the TCM itself. Sometimes a reflash (software update) can fix it, but if it’s truly faulty, replacement may be needed.
Finally, if all else fails, I’ll check the data network for faults-this usually requires more advanced tools, but it’s necessary if the simpler stuff doesn’t pan out.

Don’t forget to check for Technical Service Bulletins (TSBs) for your vehicle-sometimes there’s a known issue with a straightforward fix.

Common Mistakes with Obd2 Code U0402

I’ve seen a lot of folks jump straight to replacing the TCM or PCM without checking the basics. That’s a surefire way to waste money. Another common mistake is overlooking the battery and charging system-low voltage can cause all kinds of false codes. People also tend to skip inspecting the wiring thoroughly, especially in hard-to-reach spots. Honestly, it’s dangerous to ignore the simple stuff, because that’s where most problems start.

Seriousness of Obd Code U0402 Issues

This isn’t a code you want to brush off. When the computers can’t talk properly, safety systems like traction control and stability control might not work right. Plus, the transmission can act up or go into limp mode, which can leave you stranded or unable to accelerate safely. If ignored, you risk damaging the transmission or even the PCM/TCM themselves. You don’t want this kind of trouble on the road-get it checked out as soon as possible.

Recommended Repairs for U0402 Trouble Code

Once the root cause is found, here are the typical fixes I’ve seen work, based on OEM procedures and real-world cases:

Repair or replace damaged wiring or connectors between the PCM and TCM
Replace faulty sensors feeding bad data to the TCM
Charge or replace the battery, and fix any charging system issues
Update or reflash the TCM software if there’s a known bug
Replace the TCM if it’s confirmed faulty
Address any underlying transmission problems if that’s what’s triggering the code
In rare cases, replace the PCM if it’s the source of the problem

It’s best to start with something simple-like cleaning connections or checking the battery-before moving on to the bigger stuff.

Conclusion

To sum it up, the U0402 code means your car’s computers aren’t communicating properly, usually because the TCM is sending data that doesn’t add up. This can cause shifting problems, limp mode, and even affect safety systems. Don’t put this off for later-it’s a serious issue that can lead to bigger (and more expensive) problems if ignored. The most reliable way to fix it is to start with basic checks-battery, wiring, and sensors-then move on to the modules themselves if needed. Acting quickly and methodically is the best way to keep your car safe and running right.

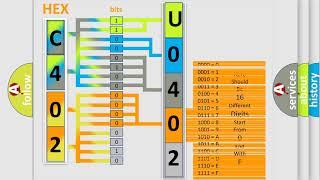

Video for "Error u0402" on YouTube
